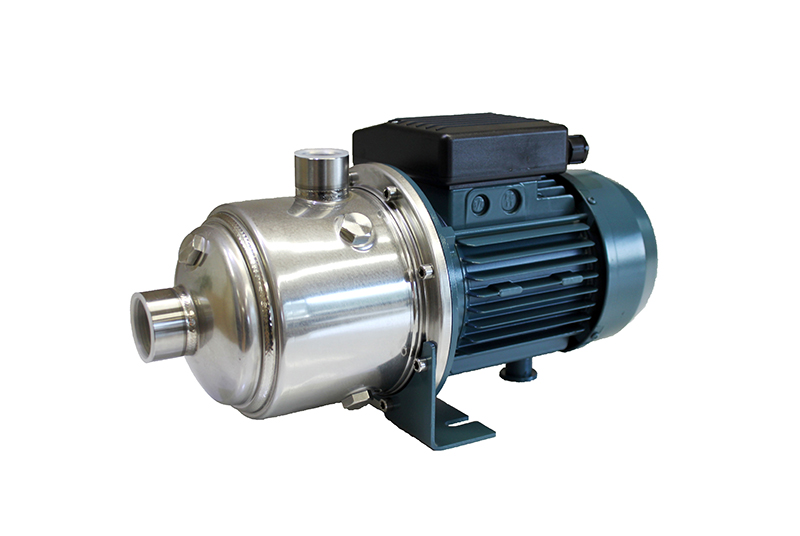

SCOPE OF APPLICATION: Multicellular horizontal pumps. These pumps feature excellent hydraulic performance, a very low noise while running and are particularly suited for use in small domestic and industrial systems, in high pressure irrigation systems, for gardening, for rainwater collection and car washing systems. Suited for pumping aggressive media with temperature not less 15°C and not higher than 110°C.
PUMP: Pump body, diffusers, motor shaft, impellers made of AISI 304 stainless steel, mechanical seal made of ceramic-graphite.
MOTOR: Electric, closed-type with external cooling fan, IP55 protection degree. Class F insulation. The standard versions of single-phase motors are fitted with thermostatcontrolled safety microswitches to avoid undesirable damages to the motor. The user must provide protection for three-phase electropumps.
TENSION: M: 230-240 V. 50Hz; T: 230/400 V. 50 Hz. Different voltage and frequency ratings are available on request.
